Active Wall Mount & Hose Reel

Description

The Active Premium Hose Reel & Wall Mount Combo was developed using extensive consumer feedback, preferences, and expert input from the detailing and car wash industry. This high-quality, versatile mounting and storage solution is designed to elevate your home car wash experience.

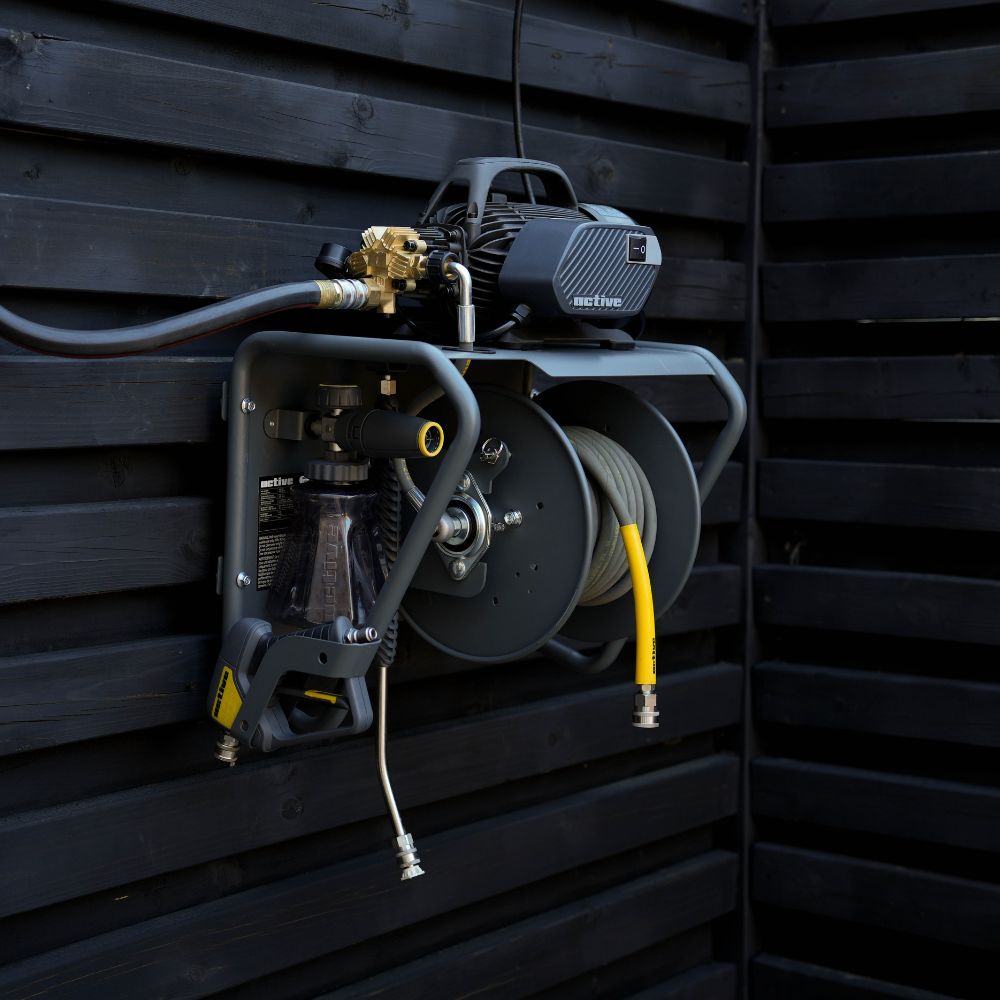

Seamless Garage Wash Experience

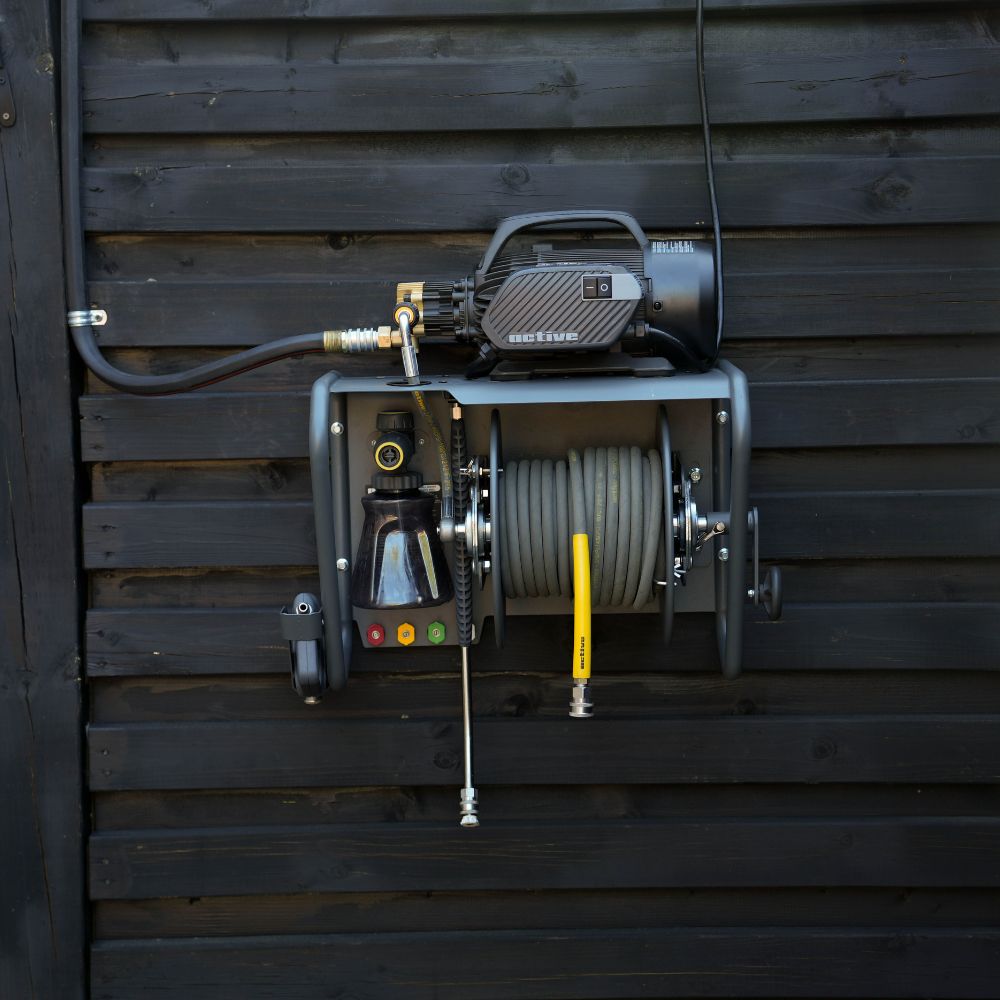

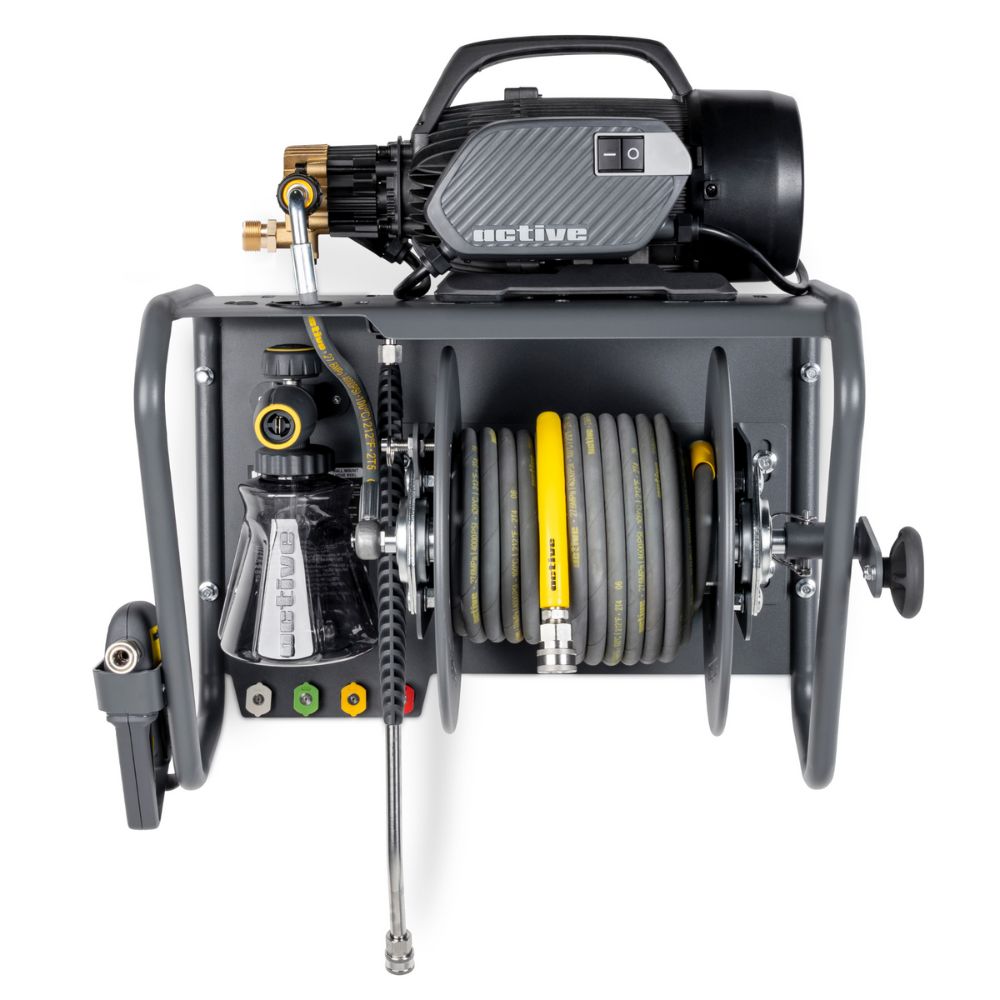

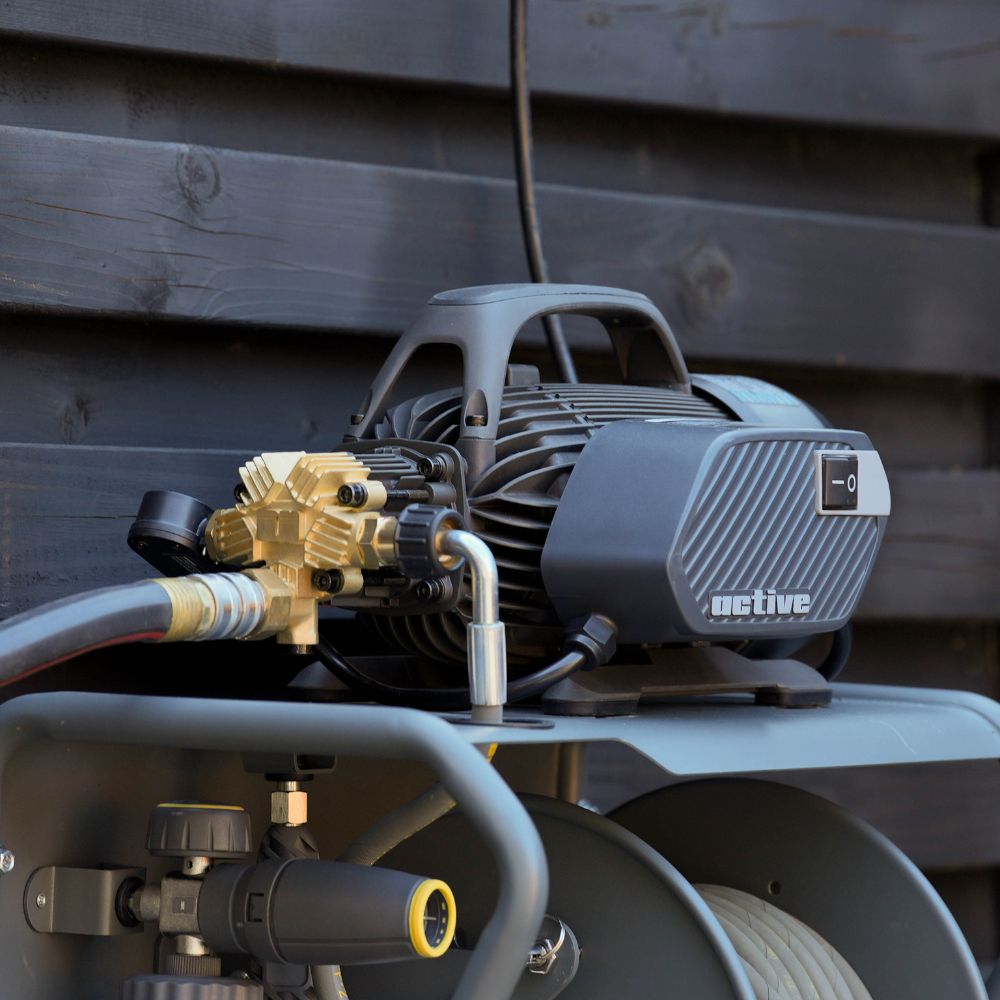

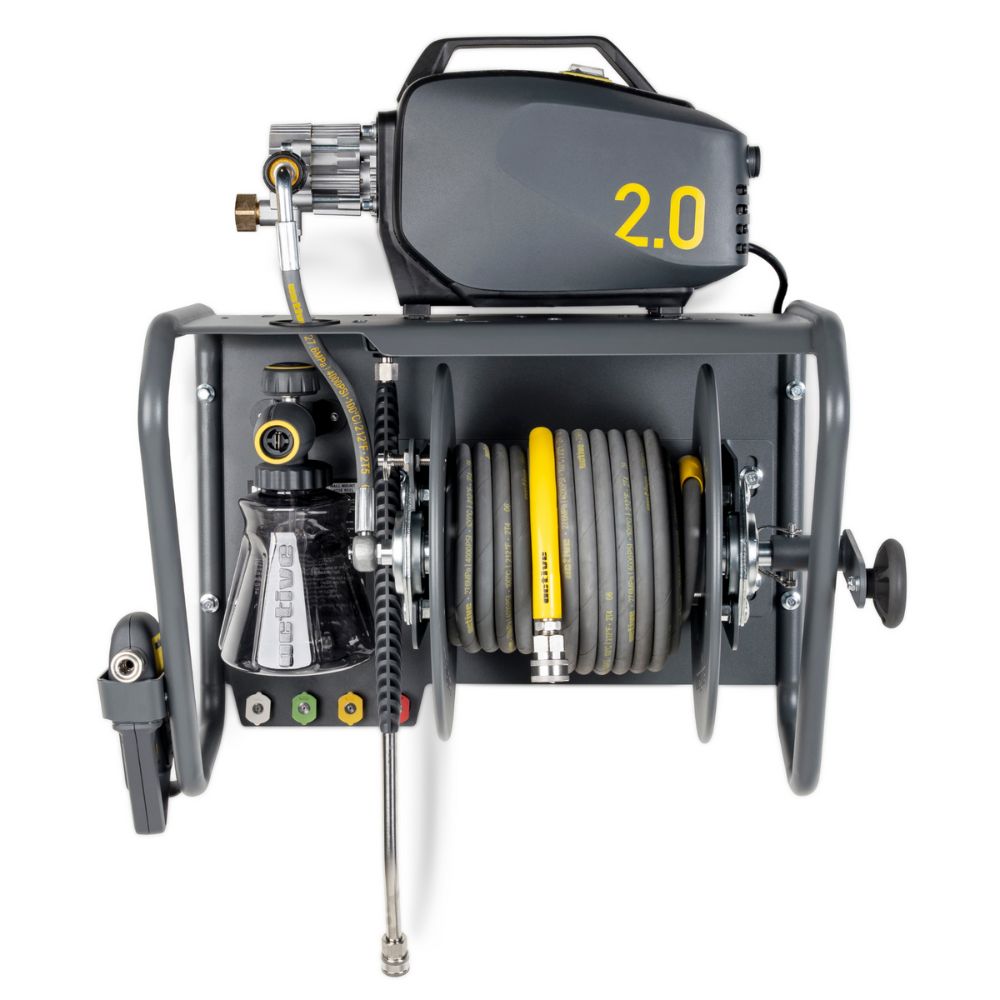

This wall-mounted reel and accessory organizer is designed to be a seamless extension of your car care routine. It integrates perfectly with the Active pressure washer line-up, especially the Active 2.0 and 2.3 models, creating an efficient, tidy, and user-friendly wash setup.

Universal Compatibility

While it’s optimized for use with Active pressure washers, this kit is also compatible with most pressure washers that feature M22-14mm outlets. If you’re using an M22-15mm pressure washer, a separate jumper hose will be required.

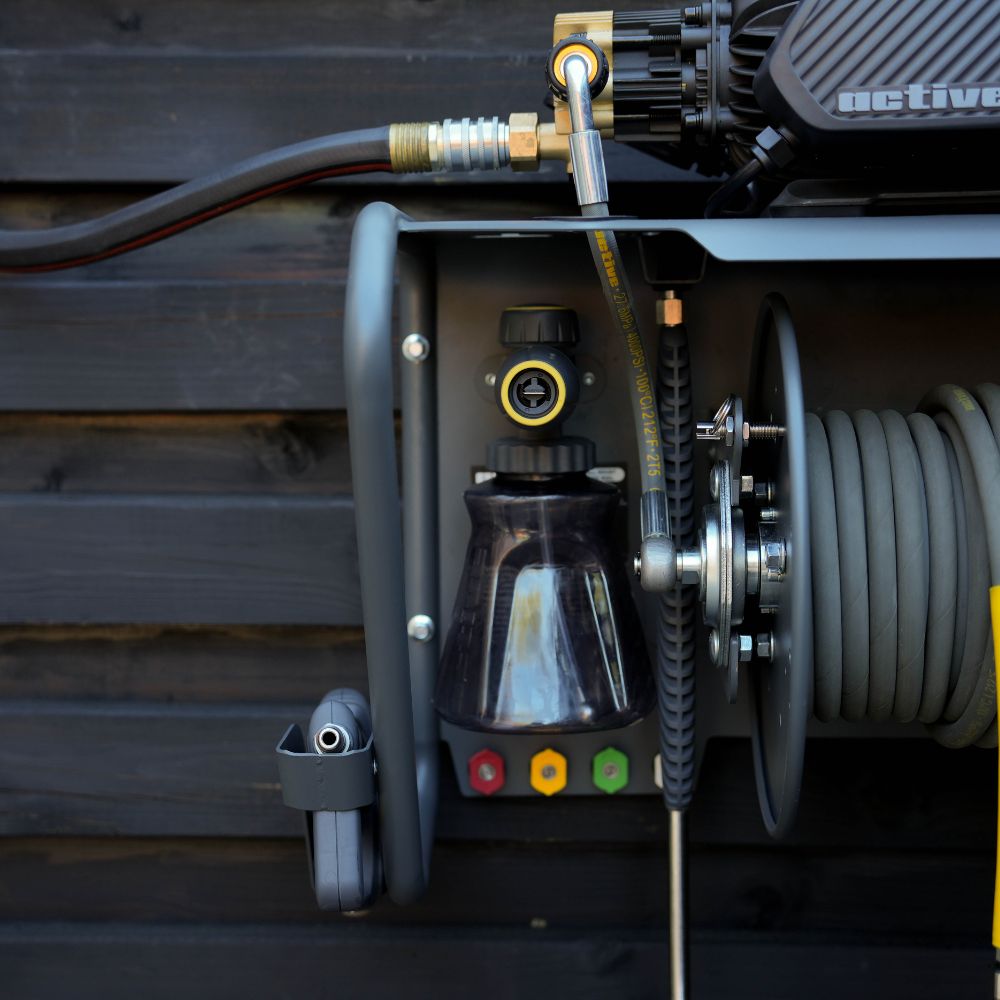

Accessory compatibility includes anything that terminates in a ¼” male plug, allowing you to store your favorite foam cannons, lances, and nozzles securely within the built-in mounts.

Technical Specs:

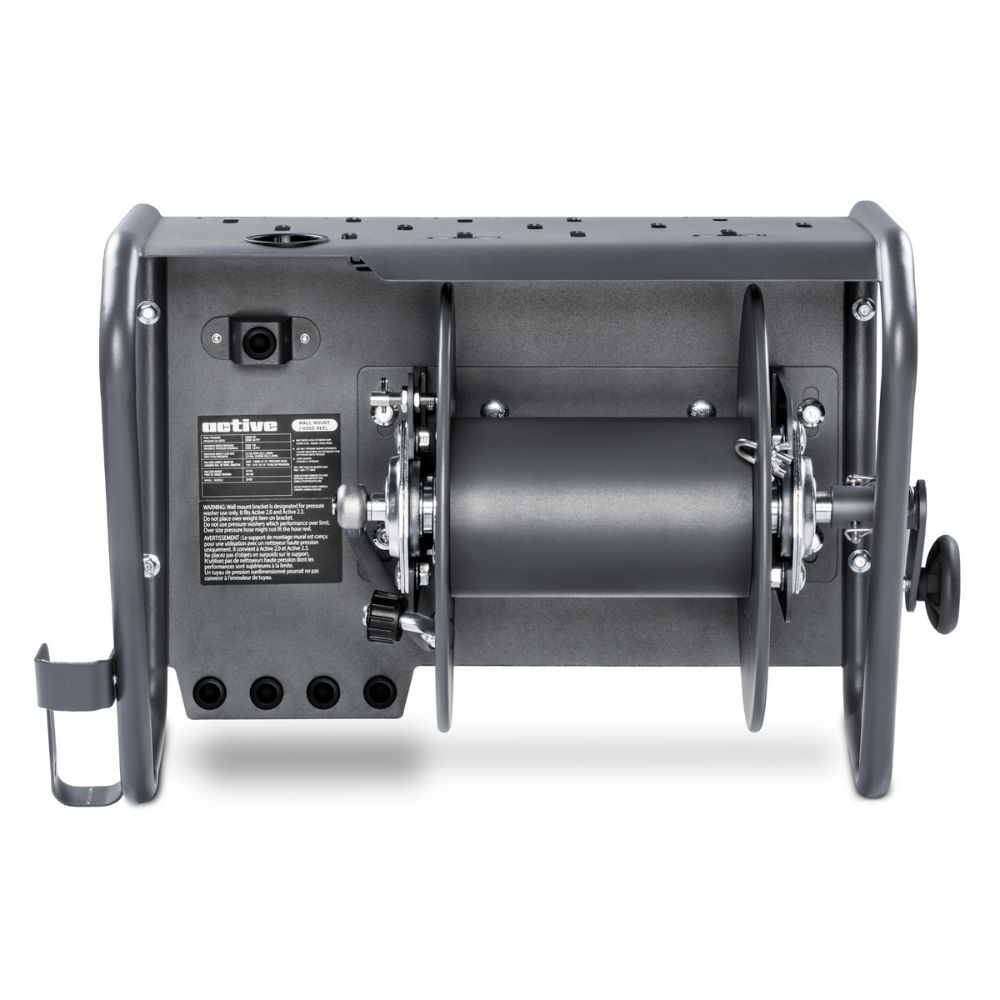

Hose Reel

Inlet fitting: 3/8” QC female coupler
Outlet fitting: M22x14mm
Extension hose pre-installed
Reel rotation lock: release lock pin before turning the reel
Hand crank: customer need install hand crank and lock by pin
Hose clamp: customer needs to make adjustment to secure hose
Stainless steel (304) reel valve

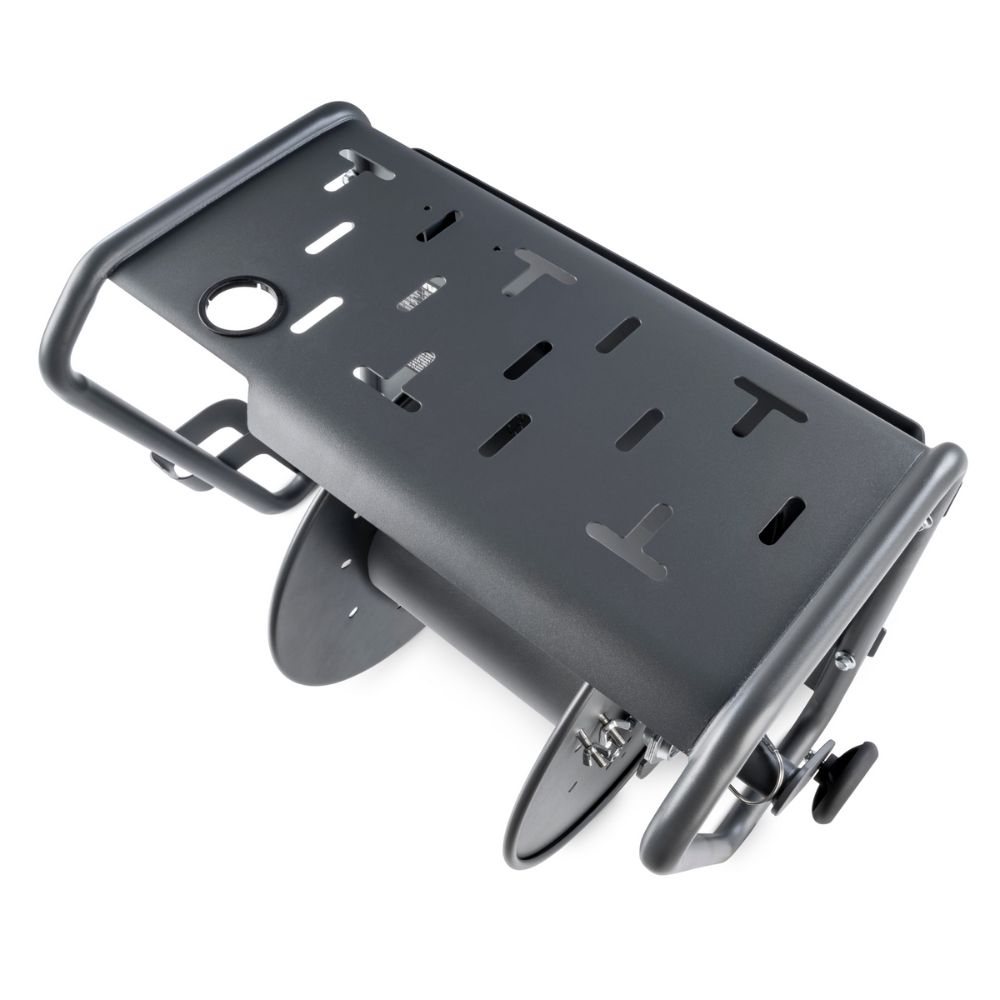

Metal frame

Hose reel is pre-installed on frame
Customer installation is required for wall mount mode
Customer installation required for gun holder and fasten by screw
Customer adjustment is required for hose clip

Hardware

4pcs 6×30 mm screws to fasten mounting plate on the wall
4pcs M8x 20mm bolts to secure wall mount to mounting plate
2pcs M5x14 bolt to secure gun holder on frame

Accessories

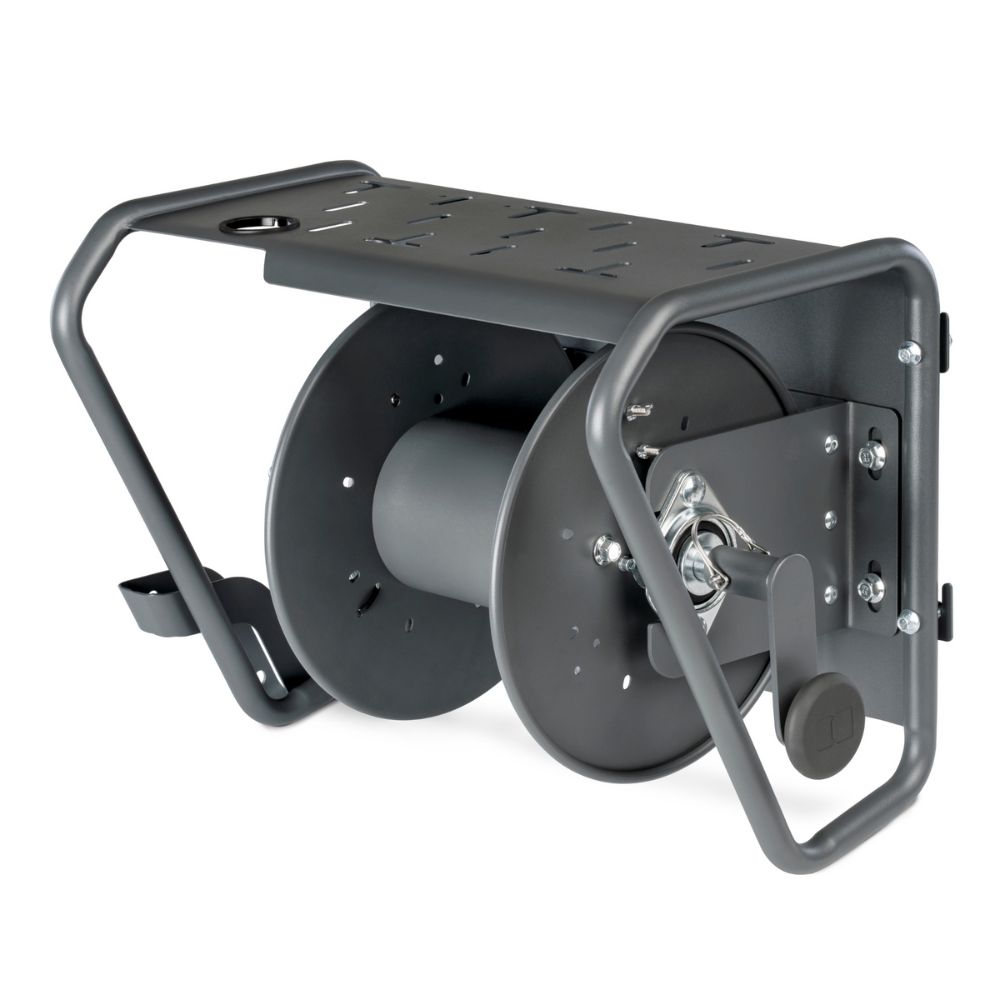

Hand crank with lock pin
Mounting plate

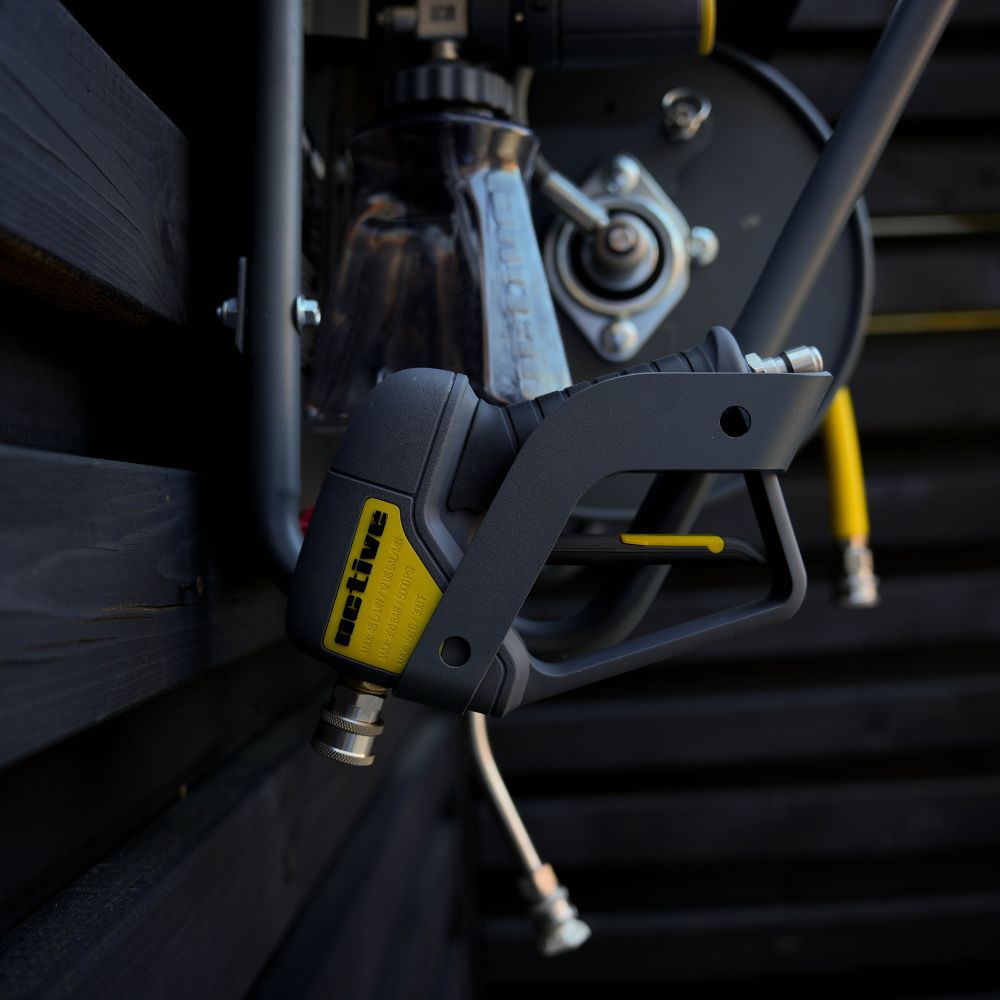

Gun holder
Hardware kit
Jumper / lead hose to pressure washer (M22 x 14mm – female)

Measurements:

Hose reel

Outer disc diameter: 300 mm
Inner barrel diameter: 120 mm
Reel width: 200 mm
Max. accommodate hose: 5/16” pressure hose, 100 ft

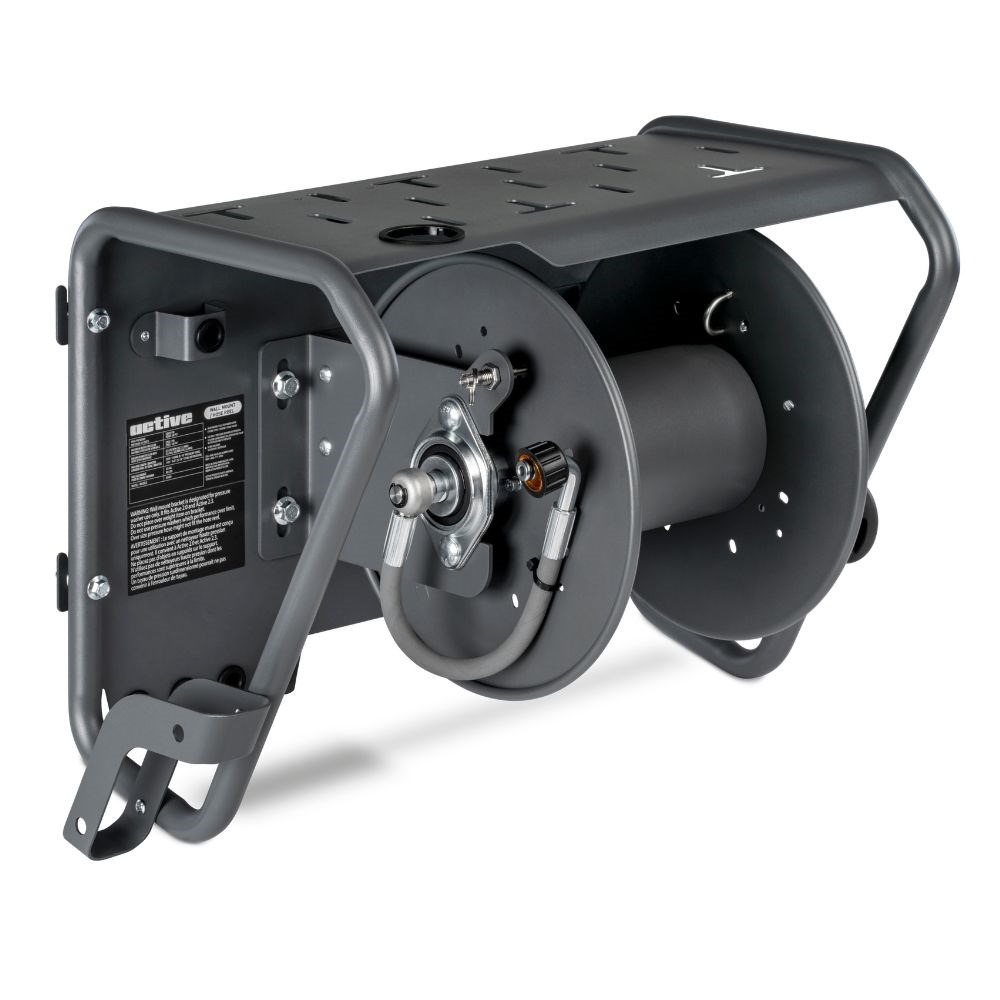

Metal cage

Width * Depth * Height (mm): 525 x 350 x 405
Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
Max loading capacity: 40kg

Whether you’re a detailing enthusiast or someone who simply values a clean and efficient garage setup, the Active Wall Mount & Hose Reel delivers a premium, all-in-one solution for hose management and pressure washer accessory organization.
